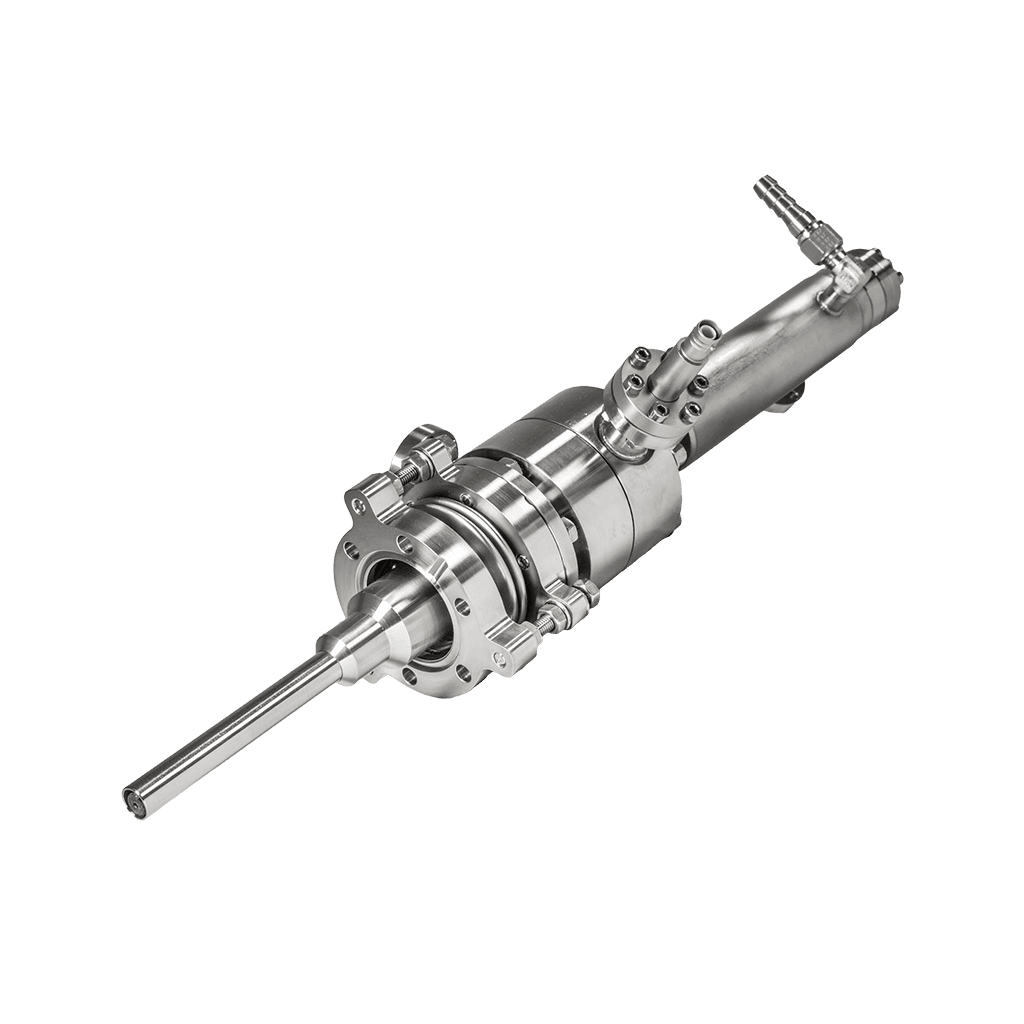

Over the years a wide range of options for the HIS 13 has been developed (HIS-series) to best meet the requirements of todays band structure analysis using PES and ARPES. In our latest brochure you find a compact overview for all variants to configure the source according to your individual experimental needs.

Right: 3D ARPES stack of Pb-QFMLG, measured with HIS 14 HD, HeI exitation. Courtesy Ulrich Starke, Max-Planck-Institut für Festkörperforschung in Stuttgart.
Image adapted from (CC-BY 4.0):
B. Matta et al., Phys. Rev. Research (2022) 023250

The biggest highlight is the focusing mirror delivering a light spot < 180 µm for both non- and monochromated HeI/II lines at 67 mm effective working distance as shown in the spot profile.

For the HIS-series overview we generated an eight-page brochure for downloading, sharing and printing:

Please download here .

Please also refer to the product pages:
